What Size Sink Fits My Cabinet? Cabinet Size Checker

Choosing a kitchen sink is not just about finding a sink that looks right. You also need to make sure it has a reasonable chance of working with your cabinet dimensions.

A sink can appear small enough based on its advertised width but still require more cabinet space because of its design, installation method, cabinet construction, or manufacturer requirements.

Our Sink Cabinet Size Checker helps you compare your cabinet and sink dimensions before buying.

Enter your cabinet width and depth, then enter the sink’s width and depth. Select the installation type to get a practical planning result.

Important: This tool is a planning and screening aid. It does not guarantee that a particular sink will fit your cabinet. Always check the sink manufacturer’s minimum cabinet requirement and installation instructions before purchasing or modifying your cabinet or countertop.

Sink Cabinet Size Checker

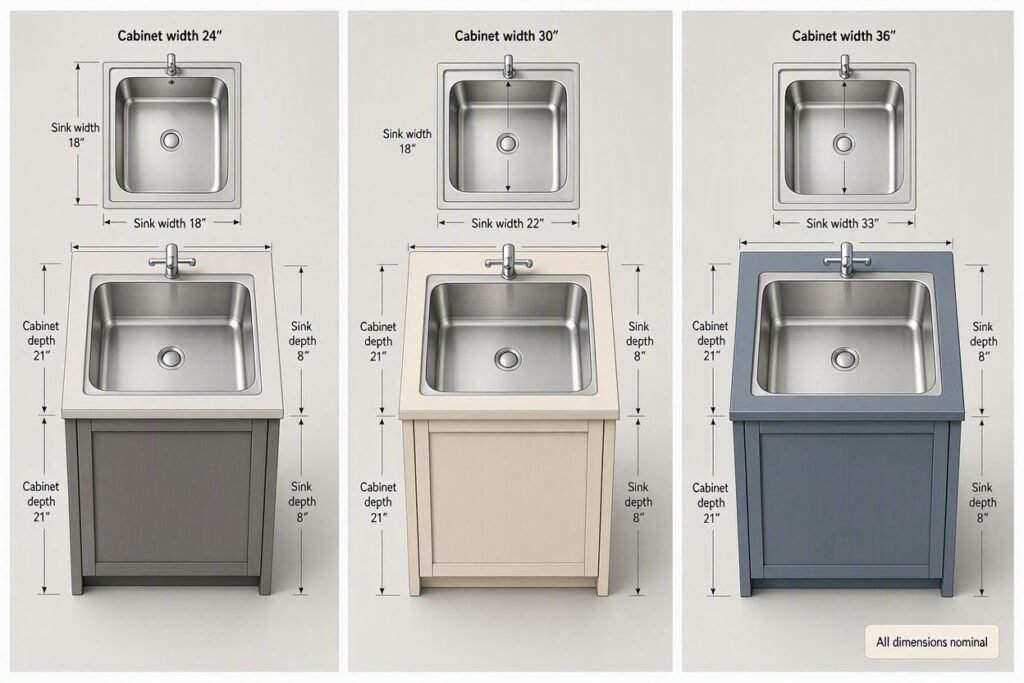

How Does the Sink Cabinet Size Checker Work?

This checker compares the dimensions you enter for your cabinet and sink.

It looks at two important dimensions:

Cabinet Width vs. Sink Width

The tool compares the sink's overall width with the cabinet width you entered.

If the sink is wider than the cabinet measurement, the tool will return May Not Fit.

If the difference is small, it may return Check Before Buying because cabinet walls, face frames, supports, and other construction details can reduce the usable space.

Cabinet Depth vs. Sink Depth

The tool also compares the cabinet's front-to-back depth with the sink's depth.

A sink may have enough width clearance but still be too deep for the available cabinet space.

That is why both width and depth should be checked before choosing a sink.

Installation Type Matters

The checker includes three common installation types:

• Undermount
• Drop-in
• Farmhouse / Apron-front

Each installation method can involve different countertop, cabinet, cutout, mounting, or support requirements.

The result should therefore be treated as an initial planning check rather than a final installation decision.

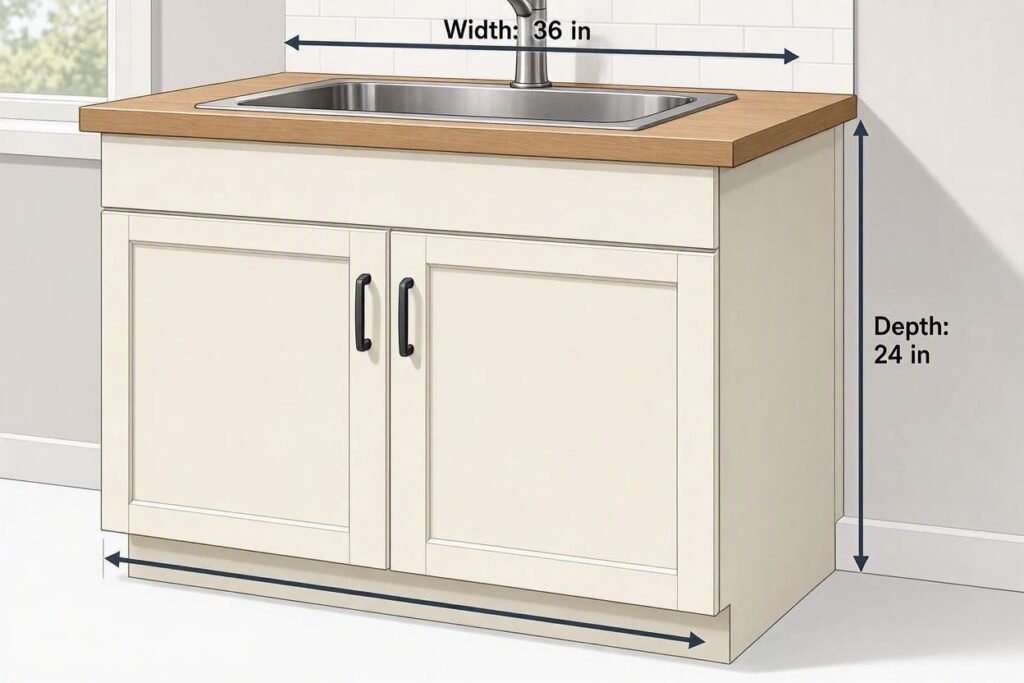

How to Measure Your Cabinet for a Sink

Accurate measurements are important when checking whether a sink may fit.

A cabinet's advertised or nominal width does not always represent the amount of usable space available inside.

Before using the checker, measure the actual cabinet area carefully.

1. Measure the Cabinet Width

Measure the cabinet section where the sink will be installed.

Look inside the cabinet and check whether anything reduces the usable width, such as:

• Cabinet walls
• Face frames
• Center supports
• Structural rails
• Drawers or other components

Record the measurement in inches.

2. Measure the Cabinet Depth

Measure from the front area of the cabinet toward the back.

Also check whether the cabinet has:

• A thick back panel
• Plumbing
• Structural supports
• Other components that reduce usable depth

The interior space may be smaller than the cabinet's advertised dimensions.

3. Check the Sink's Overall Dimensions

Use the manufacturer's published dimensions for the actual sink you are considering.

Check the sink's:

• Overall width
• Overall depth
• Bowl configuration
• Apron dimensions, if applicable
• Mounting requirements

Do not rely only on the size mentioned in the product name.

How to Measure a Cabinet for a Replacement Sink

If you are replacing an existing sink, accurate cabinet measurements can help you narrow down suitable options before purchasing.

For a more detailed measurement process, see our guide on [how to measure your cabinet for a replacement kitchen sink].

Cabinet Width Is Not the Same as Usable Sink Space

One common mistake is assuming that a cabinet's nominal width tells you exactly what size sink will fit.

For example, a cabinet described as a 30-inch cabinet does not automatically mean that every sink smaller than 30 inches will work.

The actual available space can be affected by:

• Cabinet wall thickness
• Face frames
• Support rails
• Plumbing
• Drawers
• Sink bowl configuration
• Mounting system
• Cabinet modifications

This is why the sink manufacturer's minimum cabinet requirement is so important.

The cabinet's nominal width should be used as a starting point, not as a guarantee.

What Size Sink Fits a 30-Inch Cabinet?

A 30-inch cabinet can accommodate different sink sizes depending on its construction and the specific sink model.

There is no single universal sink size that is guaranteed to fit every 30-inch cabinet.

For example, two sinks with similar outside dimensions may have different minimum cabinet requirements because their designs and installation systems differ.

Before purchasing, compare your cabinet measurements with the manufacturer's stated minimum cabinet size.

If you are still deciding what sink dimensions make sense for a compact kitchen, see our [small kitchen sink dimensions guide] for additional size information.

What Size Sink Fits a 36-Inch Cabinet?

A 36-inch cabinet generally provides more space for larger sinks, but cabinet width alone does not guarantee compatibility.

You should still consider:

• Cabinet depth
• Actual usable interior space
• Sink dimensions
• Sink configuration
• Installation method
• Manufacturer's minimum cabinet requirement

Measure the cabinet before purchasing and check the specific sink's installation specifications.

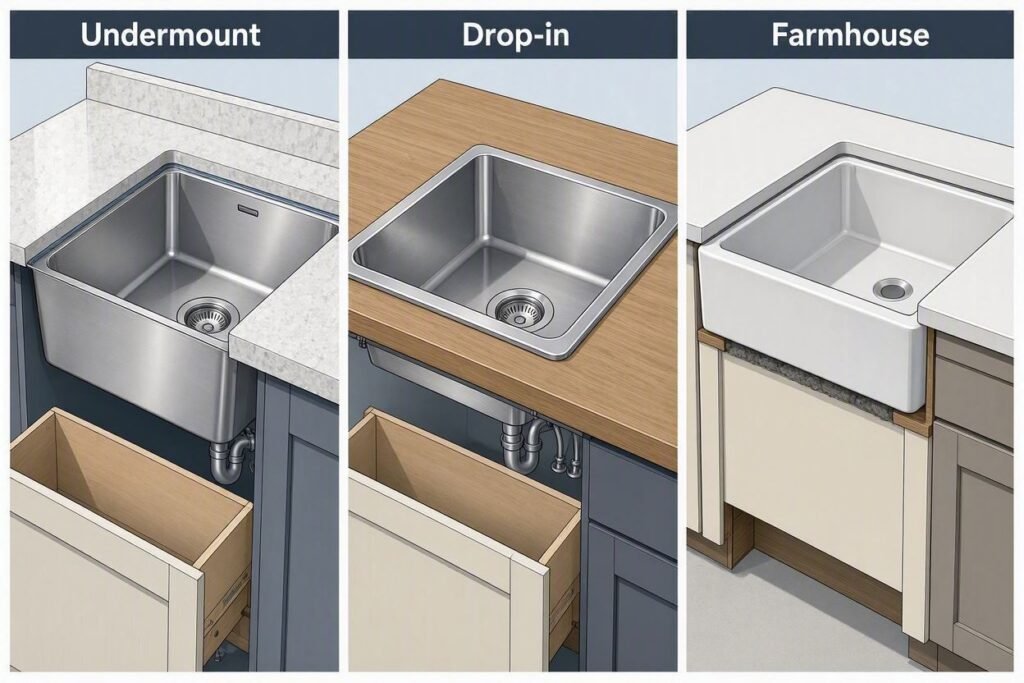

How Installation Type Changes Sink Fit

The installation method can affect whether a sink works with your cabinet and countertop.

Undermount Sinks

An undermount sink is installed beneath the countertop.

In addition to cabinet dimensions, you need to consider:

• Countertop material
• Sink mounting method
• Cutout dimensions
• Sink rim configuration
• Manufacturer's installation requirements

The countertop cutout should be based on the manufacturer's specifications or template rather than estimated from the sink's outside dimensions.

If you are comparing compact sink sizes, our [small kitchen sink dimensions guide] can help you understand common width and depth considerations.

Drop-In Sinks

A drop-in sink sits on top of the countertop with the sink rim supporting the installation.

You still need to verify:

• Overall sink dimensions
• Required countertop cutout
• Cabinet clearance
• Faucet placement
• Plumbing clearance

A sink that appears suitable based on width alone may still have an incompatible cutout or depth.

Farmhouse / Apron-Front Sinks

Farmhouse or apron-front sinks require additional attention because the front apron extends through the front of the cabinet.

Depending on the model, installation may require:

• Cabinet-front modification
• Modification or removal of a cabinet rail
• Additional support
• Specific apron dimensions
• Countertop preparation

For this reason, the checker gives farmhouse installations a more cautious result.

Always check the exact model's installation instructions before modifying the cabinet.

Example Sink Cabinet Fit Checks

The following examples show how to interpret the checker.

Example 1: 30-Inch Cabinet With a 27-Inch Sink

Suppose you enter:

• Cabinet width: 30 inches
• Cabinet depth: 24 inches
• Sink width: 27 inches
• Sink depth: 22 inches
• Installation: Undermount

The dimensions provide reasonable planning clearance.

The checker may return:

Likely Compatible

This means the entered dimensions look reasonable for an initial screening.

It does not mean the sink is guaranteed to fit.

You should still verify the manufacturer's minimum cabinet requirement and countertop cutout specifications.

Example 2: 30-Inch Cabinet With a 29-Inch Sink

Now consider:

• Cabinet width: 30 inches
• Cabinet depth: 24 inches
• Sink width: 29 inches
• Sink depth: 23.5 inches

The dimensional clearance is tighter.

The checker may return:

Check Before Buying

This means you should inspect the cabinet's actual usable space and compare the sink's exact specifications with the cabinet before purchasing.

Example 3: Sink Wider Than the Cabinet

Suppose you enter:

• Cabinet width: 30 inches
• Cabinet depth: 24 inches
• Sink width: 32 inches
• Sink depth: 22 inches

The sink is wider than the cabinet measurement entered.

The checker will return:

May Not Fit

A different sink or cabinet configuration may be necessary.

Why We Don't Use a Simple "Cabinet Minus 3 Inches" Rule

You may see simple sink-sizing formulas suggesting that you should subtract a fixed number of inches from the cabinet width to determine the maximum sink size.

That can be useful as a rough planning shortcut in some situations, but it should not be treated as a universal rule.

Sink manufacturers can specify different minimum cabinet requirements for different models.

The actual fit can also be affected by cabinet construction, sink design, installation method, supports, and countertop requirements.

For a more reliable decision, use the cabinet dimensions as a screening step and then check the manufacturer's specifications for the exact sink.

Important Sink Fit Warning

This Tool Does Not Guarantee Fit

The result from this checker is a planning and screening estimate.

It cannot account for every physical condition inside your cabinet or every requirement of a particular sink model.

Before purchasing a sink, check the manufacturer's specifications for:

• Minimum cabinet size
• Overall sink dimensions
• Required countertop cutout
• Installation method
• Mounting requirements
• Cabinet modifications
• Support requirements
• Plumbing clearance

If the manufacturer's instructions conflict with the result from this tool, follow the manufacturer's specifications.

This is especially important before cutting a countertop or modifying a cabinet.

What Should I Check Before Buying a Sink?

Before ordering a sink, use this quick checklist:

Cabinet

• Measure the actual cabinet width.
• Measure the usable cabinet depth.
• Check for face frames and support rails.
• Look for plumbing or structural obstructions.

Sink

• Check the exact overall width.
• Check the exact overall depth.
• Check the sink configuration.
• Find the manufacturer's minimum cabinet requirement.

Installation

• Confirm the installation type.
• Check the countertop cutout requirements.
• Verify mounting or support requirements.
• Check whether cabinet modifications are necessary.

Final Verification

Do not rely on the calculator alone.

Compare your measurements with the manufacturer's installation drawing, template, and specifications before making a purchase or cutting the countertop.

Related Sink Tools

Once you know your cabinet dimensions, these Tiny Sink Solutions tools can help you continue your sink planning process.

Sink Calculator

Need to work with sink dimensions or perform additional calculations?

[Use our Sink Calculator] to help with your measurements and planning.

Sink Size & Type Finder

Not sure which sink size or installation type makes sense for your kitchen?

[Find the right sink size and type] based on your requirements.

Small Kitchen Sink Dimensions

If you need help understanding common compact sink widths and depths, read our [small kitchen sink dimensions guide].

Cabinet Measurement Guide

Before entering your measurements into the checker, follow our guide on [how to measure your cabinet for a replacement kitchen sink].

Frequently Asked Questions

What size sink fits my cabinet?

The right sink size depends on your cabinet's usable space and the sink manufacturer's minimum cabinet requirement.
Use this checker for an initial planning assessment, then verify the specific sink model.

What size sink fits a 30-inch cabinet?

A 30-inch cabinet can accommodate different sink sizes depending on the cabinet construction and sink model.
Always check the manufacturer's minimum cabinet requirement before buying.

Does cabinet depth matter when choosing a sink?

Yes. A sink can fit the cabinet width but still be too deep for the available space.
Check both cabinet and sink depth before purchasing.

Is cabinet width enough to determine sink size?

No. Cabinet construction, sink design, installation method, and manufacturer requirements can all affect compatibility.
Nominal cabinet width should not be treated as a guaranteed sink size.

Can a farmhouse sink fit my existing cabinet?

It may, but farmhouse sinks often require cabinet-front modifications and additional support.
Always check the exact model's installation instructions.

Can this tool guarantee that my sink will fit?

No. This is a planning and screening tool rather than a guarantee.
The manufacturer's installation specifications should always be the final reference.

Do undermount sinks require special measurements?

Yes. Undermount installations can require specific countertop cutout dimensions and mounting requirements.
Always use the manufacturer's installation instructions and template when applicable.

Should I measure the cabinet or the existing sink?

Measure the cabinet when determining what replacement sink may fit.
If replacing an existing sink, also measure the current sink and countertop cutout to understand the installation conditions.

Final Takeaway

Finding the right sink for your cabinet starts with accurate measurements.

Your cabinet width and depth can help narrow down your options, but they are only part of the fit equation. Sink design, installation type, usable cabinet space, countertop requirements, and manufacturer specifications can all affect compatibility.

Use the Sink Cabinet Size Checker as an easy first step, then verify the exact sink's requirements before purchasing or modifying your kitchen.
